Cow Rabbit shrimp Feed 100kg/H Small Pellet Making Machine

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Standard exportation wooden case Delivery Time : 7-9 work days
Payment Terms : T/T L/C Western Union Supply Ability : 30 sets/month
Place of Origin: China Brand Name: AMEC
Certification: CE/ISO Model Number: Small Pellet Making Machine

Detail Information

Item: Small Pellet Making Machine Capacity: 100kg/h
Function: For Making Chicken Poultry Feed Pellets Application: Farm/home Use
High Light:

100kg/H Small Pellet Making Machine

,

shrimp Small Pellet Making Machine

,

100kg/H cattle pellet machine

Product Description

100kg/H Small Pellet Making Machine For Making Chicken Poultry Feed Pellets


Introduction for Small Pellet Making Machine:



This flat die small pellet making machine is mainly used for producing feeds for chicken, cow, sheep, rabbit, chick, duck, pig, shrimp and making other industrial pellets. The flat die small pellet making machine is widely used for industry, plastic pellet, organic fertilizer and wood pellet.

Pellet size is available from 2mm to 8mm.



Main Parameters of Small Pellet Making Machine:

Model Capacity (kg/h) Power(kw) Weight(kg)
YHPM-120 60-100 2.2/3 60
YHPM-150 90-120 4 180
YHPM-200 200-300 7.5 250
YHPM-230 300-400 11 270
YHPM-260 400-600 15 300
YHPM-300 600-800 15/18.5 310
YHPM-360 700-900 22 400
YHPM-400 900-1100 30 450



Main Features of Small Pellet Making Machine:

1. Simple structure, wide application range, small floor area and low noise.

2. Powder feeding, no need of adding water. The final feed pellets moisture is low and easy for storage.

3. The results showed that the pellet feed can improve the digestion and absorption of nutrients, and the pathogenic microorganisms and parasites can be killed during pelletizing. The feed pellet is suitable for raising rabbits, fish, ducks and experimental animals.

4. The die of chicken feed pellet making machine has die hole form 1.5 ~ 20 diameters, which is suitable for granulation of different materials and obtains the best results.

5. Suitable for all kinds of materials.



Application of Flat Die Small Pellet Making Machine:

This flat die small pellet making machine can not only produce feed pellets for chicken, but can also produce feed pellets for pigs, cattle, sheep, rabbits, ducks, cattle, other poultry and animals, etc.



Working Principle of Flat Die Small Pellet Making Machine:

Pelleting process( flat die small pellet making machine):When materials meet the pelleting requirement, which means the material particle size is less than 6mm, and the moisture is 12-20%. At this time, the materials can be transferred to the pellet machine for pelleting. When raw material is delivered into the pelletizing chamber, they will be pressed into die hole. The die rotates and the roller is stationary at the same time. The resulting pressure will compress the material and extrude it through the hole of the die. As they are extruded, cutting knives will cut the pellets into specified size. You can adjust to get pellet with different length.

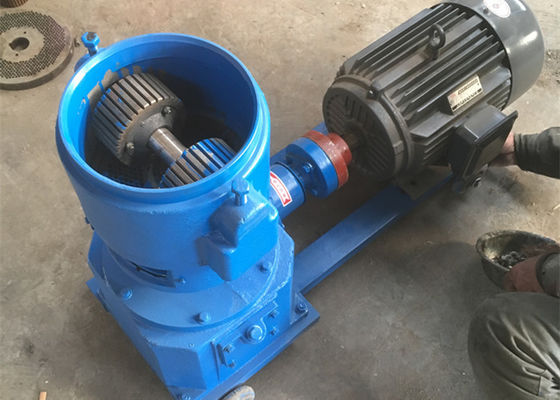

Structure of Small Pellet Making Machine:

Cow Rabbit shrimp Feed 100kg/H Small Pellet Making Machine 0



FAQ:

1. Why there is no pellet output during pelleting?

A: There are usually 2 cases causing this problem:

1). Die holes are corrosion and has poor finish.

2). Large gap between roller and die plate.

The ways to solve this problem are:

1). Clean the remaining pellet in the die hole. 2). Use oil containing material to make pellets for polishing the die hole.

2. Why the Pellets discharged have much powder or no pellets discharged?

A: There are usually 3 cases for causing this problem:

1). Moisture of material is too low.

2). Moisture of material is too high.

3). Too much crude fiber in raw material.

The ways to solve this problem are:

1). Increase water content.

2). Reduce water content.

3). Add more sticky powder.

3. Why the capacity becomes more and more lower?

A: There are usually 2 cases for causing this problem:

1). Large gap between roller and die plate.

2). Moisture of material is too low.

The way to solve this problem:

1). Adjust the gap between roller and die plate. 2). Increase the water content of material.

4. Why are the pellets too hard and bright?

A: Moisture of material is a little low will cause this problem, add more water for the powder material.

5. Why the pellets edge is soft and have rough surface?

A: There are 2 cases for causing this problem:

1). Moisture of material is not suitable. 2). New die for using.

The way to solve this problem:

1). Reduce or increase the moisture of material. 2). Polish the die by using oil containing material.

6. Why the pellet machine are suddenly suffocated?

A: Big and hard object or metal enters the gap between roller and die plate will cause this problem, remove the objects to solve it.
