Industrial 2t/H Animal Feed Production Line Poultry Feed Mill Plant High Efficiency

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : standard exportation wooden case Delivery Time : 25-30 work days
Payment Terms : T/T L/C Western Union Supply Ability : 10 sets/month
Place of Origin: China Brand Name: AMEC
Certification: CE/ISO Model Number: Industrial 2t/h Poultry Feed Mill Plant

Detail Information

Item: Industrial 2t/h Poultry Feed Mill Plant Capacity: 2ton Per Hour
Function: For Making Animal/poultry Feed Pellets Key Words: Poultry/Animal Feed Pellet Line
Application: Small Feed Factory/farm Certificate: CE/ISO
High Light:

animal feed production line

,

pellet mill line

Product Description

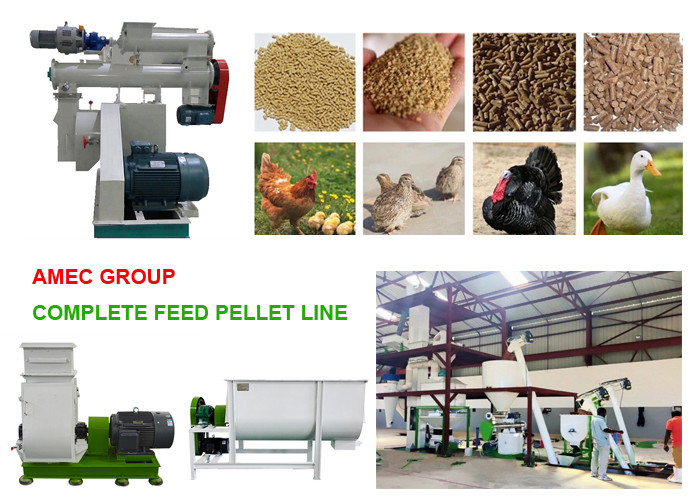

AMEC Complete Factory Price Industrial 2t/h Poultry Feed Mill Plant



Introduction for This Industrial 2t/h Poultry Feed Mill Plant:



1.This series animal feed pellet line machinery adopts mature technology to make high quality animal feed pellets for chicken, cattle, horse, duck etc with medium/large-scale production.



2. Based on the outstanding features of its high throughput, low consumption and mature technology, ring die feed pellet machine has become more and more popular and possess broad market share at home and aboard.



3. It is ideal equipment for animal and poultry breeding in grain feed factory, livestock farm, poultry farm, individual farmers, feed processing industry, etc.



Optional capacity for auto complete feed plant: 1-30t/h





Flowchart of This Industrial 2t/h Poultry Feed Mill Plant:



1. Raw materials receiving and cleaning process- (drum sieving precleaner, conical powder sieve and peermanent magnetic drum). Drum sieving precleaner is used to clean and sort out the big debris such as corn stalk, stones, rope head, branches, corn cobs and the small debris such as mud, sand and blighted grain. When the raw materials are powder, conical powder sieve is used to clean the debris in the powder. (And the machine can also be used after the mixing process and before the pellet making process to make sure the pellet mill can be smooth operation).



2. Crushing process: hammer mills We have many kinds of hammer mills for your choice: water drop hammer mill, multifunctional hammer mill and 9fq hammer mill etc. This process is mainly used to crush to raw materials into powder.



3. Mixing process: feed mixer The feed mixer we have are single shaft double screw mixer, double shaft paddle mixer, vertical mixer. The process is used to mixed the crushed materials with higher uniformity.



4. Pellet making process: feed pellet mill We have five models of feed pellet mill for your choice. This process is to press the pellets out.



5. Pellet cooling process: counter flow cooler The newly pressed pellets are very high in temperature. This process is to cool the pellets to ±3-5℃ of the room temperature.



6. Pellet crumbling process: feed crumbler (roller crusher) This process is mainly to crush the big pellets into small ones. It is mainly used for chicken feed pellet line.



7. Sifting process: vibratory sizing sieve and plenary rotary sizing sieve This process is mainly to sort out the inappropriate pellets and powder and send the standard pellets to next process.



8. Packing process: packaging machine This process is to pack the pellets into bags which is convenient for storage and transportation.





Raw Material Application for This Industrial 2t/h Poultry Feed Mill Plant:



1. Alfalfa, grass,hay
2. All grains like: corn, soybean, wheat, barley, soybean cake, etc.



Feed Pellet Size:

1. For pig: usually ø3.5-6.5mm.
2. For cattle:  usually ø4.5-8mm.
3. For chicken: usually ø3.2mm.
4. For fish: usuallyø2.0, ø2.5, ø3.0mm.
5. For shrimps: usually ø1.0-ø3.5mm.
