1t/H 2t/H Poultry Feed Pellet Mill With Ring Die
Contact Person : Crystal Guo
Phone Number : +86 13083696911
WhatsApp : +8613083696911
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | standard exportation wooden case | Delivery Time : | 7-9 work days |
Payment Terms : | T/T L/C Western Union | Supply Ability : | 30 sets/month |
Place of Origin: | China | Brand Name: | AMEC |
---|---|---|---|
Certification: | CE/ISO | Model Number: | Poultry feed making machine |
Detail Information |
|||
Item: | Poultry Feed Making Machine | Capacity: | 1-20t/h |
---|---|---|---|
Function: | For Making Poultry Feed Pellets | Pellet Machine: | Ring Die Poultry Feed Making Machine |
Raw Material: | Grass/alfalfa/hay/grain | Application: | For Feed Line Use |
High Light: | pellet production machine,pellet production equipment |
Product Description

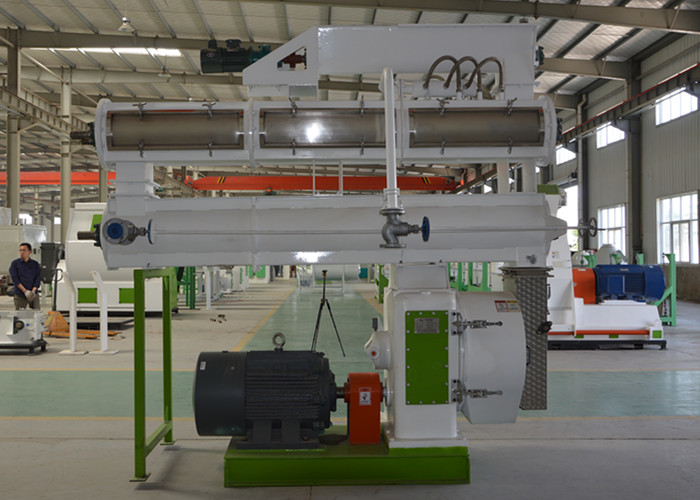

Livestock Feed Pellet Machine All In One Pellet Maker Anti Bridging Structure
Features and Advantages of Ring Die Poultry Feed Making Machine:
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;
3. LL stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
5. Gearbox and driving holes’ accuracy are guaranteed by specialized casting supplier and NCC;
6. The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
7. 2 pcs quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.
Main Parameters of Ring Die Poultry Feed Making Machine:
Model |
SZLH250 |
SZLH320 |
SZLH350 |
SZLH 420 |
SZLH508 |
Main Motor Power (kw) |
22 |
37 |
55 |
110 |
160 |
Conditioner Power (kw) |
1.5 |
2.2 |
2.2 |
5.5 |
7.5 |
Dia of mould (mm) |
250 |
320 |
350 |
420 |
508 |
Feeder Power (kw) |
0.75 |
1.5 |
1.5 |
1.5 |
2.2 |
Size of Finished pellets (mm) |
1.5-12 |
1.5-12 |
1.5-12 |
1.5-18 |
1.5-18 |
Yeild (t/h) for animal feed |
1-2 |
3-5 |
5-8 |
8-12 |
12-18 |
