Product Description

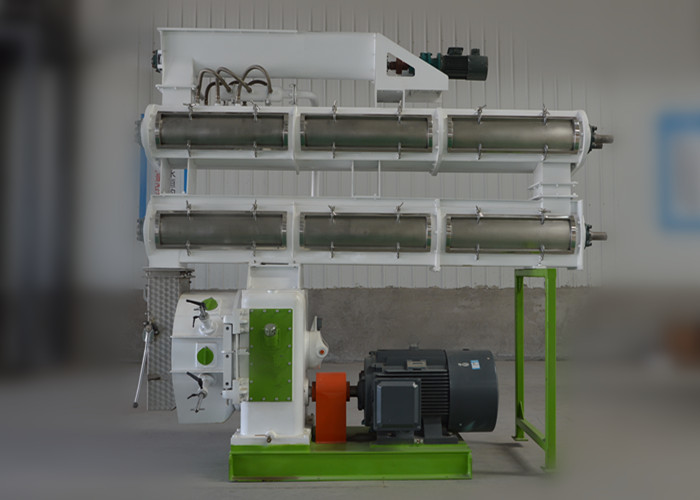

1-20t/H Feed Processing Industrial Pellet Machine For Cattle Chicken Poultry
Introduction for Ring Die Feed Processing Industrial Pellet Machine:
This series of ring die feed processing industrial pellet machine is the main machine for pressing feed pellets.
The ring die feed processing industrial pellet machine is mainly composed of feeder, conditioner, pelleting chamber, lubrication system, etc.
The ring die feed processing industrial pellet machine is widely used in feed factory, farm, fertilizer plant, Chinese herbal medicine and chemical granule pressing.
Main Parameters of Ring Die Feed Processing Industrial Pellet Machine:
| Model |
Capacity (t/h) |
Power
(kw)
|
Feeding Power (kw) |
Conditioner Power (kw) |
Weight (kg) |
| SZLH250 |
1-2t/h |
22kw |
0.55kw |
1.5kw |
1000kg |
| SZLH320 |
3-5t/h |
37kw |
1.5kw |
2.2kw |
2500kg |
| SZLH350 |
5-8t/h |
55kw |
1.5kw |
3.0kw |
3500kg |
| SZLH420 |
8-12t/h |
110kw |
2.2kw |
7.5kw |
4200kg |
| SZLH508 |
12-18t/h |
132/160kw |
2.2kw |
11kw |
5100kg |
Application of Ring Die Feed Processing Industrial Pellet Machine:
The ring die feed processing industrial pellet machine can produce feed pellets for chicken, pig, duck, sheep, cattle and other animals.
Raw Material Applicable for Ring Die Feed Processing Industrial Pellet Machine:
Corn, bran, soybean meal, straw, grass, rice husk, etc.
Features of Ring Die Feed Processing Industrial Pellet Machine:
1. Feeder, conditioner, and chute of this animal feed pellet machine are all made of stainless steel for durability.
2. The feeding system adopts electromagnetic speed control design, which is convenient in speed adjusting and fully adapts to the requirements of different materials.
3. The main drive adopts high-precision gear transmission, and the ring die adopts the quick release hoop type, which is easy to disassemble and the output is increased by about 20% compared with the belt drive type.
4. Safe and reliable with safety devices such as strong magnetic security magnets and overload protection device.
Structure of Ring Die Feed Processing Industrial Pellet Machine:
1. Screw feeder motor
2. Screw feeder
3. Conditioner
4. Conditioner motor
5. Pellet machine main motor(Siemens)
6. Pelleting chamber(die and roller inside)
7. Machine base
Main Parts of Ring Die Feed Processing Industrial Pellet Machine:
