Single Shaft Paddle Feed Mixing Equipment Cattle Chicken Pig Animal Feed Mixer

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : standard exportation wooden case Delivery Time : 7-9 work days
Payment Terms : T/T L/C Western Union Supply Ability : 30 sets/month
Place of Origin: China Brand Name: AMEC
Certification: CE/ISO Model Number: Animal feed mixer

Detail Information

Item: Animal Feed Mixer Type: Horizontal Animal Feed Mixer
Voltage: 380/220V Or Customized Capacity: 500-3000kg/batch
Warranty: 12 Months Function: For Mixing Animal Feed Material
High Light:

poultry feed mixer machine


animal food mixer machine

Product Description

Single Shaft Paddle Feed Mixing Equipment Cattle Chicken Pig Animal Feed Mixer

This cattle chicken pig animal feed mixer is the best product to improve production, quality and technical update with feed factory,additive factory and premix factory. It can be widely used in feed, food, flour, chemical, medicine and other industries.


Mixing speed is fast, mixing cycle is about 30-120 seconds;

High mixing uniformity(CV 5% or less), and no segregation.

All the base type electric or pneumatic door discharge, material residual rate is low.

Carbon steel, stainless steel, composite materials, and other body can choose.



Features of Cattle Chicken Animal Feed Mixer:

1. Mixed in gravity-free state , no segregation , variety of liquids can be added . Two open doors structure , discharge rapidly , no leakage , less residue .

2. Series Double Shaft Paddle Mixer Short mixing time(40-120sec/batch), high evenness degree(CV ^ 5%) may be up to 2% .

3. Conveyed by three chains , run in low speed, stable operation movement.

4. The improvement of open door shaft and link mechanism ensure that the angle of openning door is larger than 90-(the materials can't fall on the door), close door which is deadlocked.

5. Advanced adding and spraying system could be added many kinds of liquid and solid at the same time , precision spraying and convenient control.

6. Unique design return air system ensures air current balance in all-dimensional feed in materials , Suitable for premix, poultry feed , aquatic feed , additives , chemical and medicine industries, etc.



Main Parameters & Structure of  Cattle Chicken Animal Feed Mixer:


Mixing Volume(m3)




















1. Reducer: connection the main shaft and motor.


2. Siemens motor: we equip the super brand Siemens motor in our machine.


3. Main mixing chamber: the paddle is inisde. the paddle and the main mixing chamber could be made of complete stainless steel. just depend on your requirement if necessary.


4. Ventilating duct: keep the balance of air pressure in the mixing chamber.


5. Bearing: we adopt the super brand durable bearing in our machine.


6. Monitor window: we could monitor the running situation.

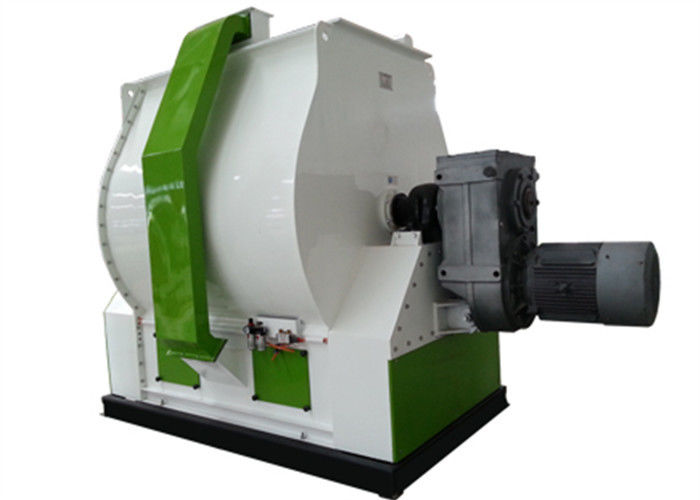

Single Shaft Paddle Feed Mixing Equipment Cattle Chicken Pig Animal Feed Mixer 0
