500-1000 Kg/H Feed Pellet Production Line Poultry Feed Pellets Making
Contact Person : Crystal Guo
Phone Number : +86 13083696911
WhatsApp : +8613083696911
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | standard exportation wooden case | Delivery Time : | 25-30 work days |
Payment Terms : | T/T L/C Western Union | Supply Ability : | 10 sets/month |
Place of Origin: | China | Brand Name: | AMEC |
---|---|---|---|
Certification: | CE/ISO | Model Number: | Cattle Feed Plant Machinery |
Detail Information |
|||
Features: | Automatic Cattle Feed Plant Machinery | Item: | Cattle Feed Plant Machinery |
---|---|---|---|
Capacity: | 1-20T/H Cattle Feed Plant Machinery | Final Product: | Livestock Feed Pellets |
Pellet Size: | 2-12mm | Motor/bearing: | Siemens/SKF |
High Light: | animal feed production line,pellet mill line |
Product Description
AMEC GROUP Factory Price Automatic Cattle Feed Plant Machinery for Livestock
This cattle feed plant machinery are suitable for large and medium-size farms and medium-sized feed mill plant. It can produce not only the cattle feed pellet, but also for making chicken feed, sheep feed and other kinds of pellet feed or powder feed.

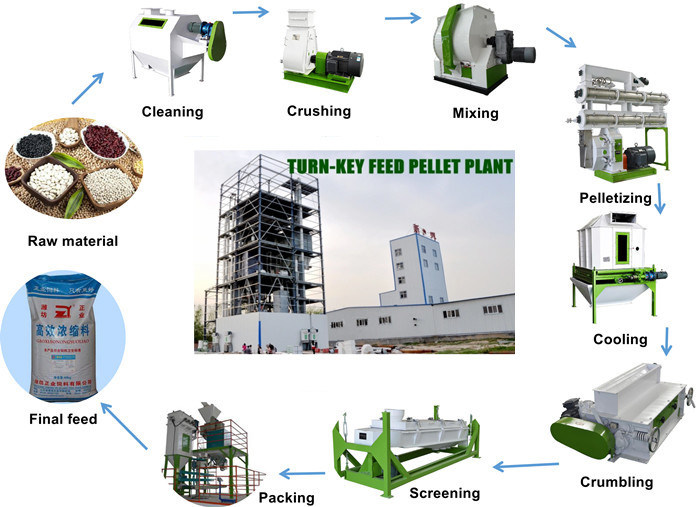

Flowchart of Cattle Feed Plant:
1. Crushing Section
When the thickness of the raw material is >5 mm, the raw materials must be used for size reduction before the feedstock is sent to the hammer mill (crusher) to reach a diameter of less than 3 mm.
2. Mixing Section
Two open doors structure, discharge rapidly, no leakage, no residue. Multiform liquid adding system and can be matched with compressed air jetting system Suitable for mixing premix, poultry feed, aquatic feed, additives and chemical and medicine industries, etc
3. Pelletizing Section
Acting as the heart part of the whole processing line, ring die feed pellet mill through adjusting the rotational speed of screw feeder axis to obtain the suitable flow of material, through the enforced feeder, enter the pressing room to pelletize finally.
4. Cooling Section
After the pelletizing process, the temperature of the feed pellet is about 60-80 degrees Celsius, with a moisture content of about 15%. A Cooler must then be used to reduce the moisture content of the feed pellets to about 3-4%, thereby making the feed pellets easier to store.
5. Classifying screen
It is applicable for screening and classifying of mash or pellet feed. It is also can be used for cleaning of raw materials and classifyingof semi finished products after second grinding.
6. Packing Section
After cooling and screening, the feed pellet must be protected from moisture and other environmental conditions. For this there is the packing process.
Main Parameters of Ring Die Feed Pellet Machine:
Model | Capacity(t/h) | Power(kw) | Feeding Power(kw) | Conditioner Power(kw) | Weight(kg) | Dimension(mm) |
SZLH250 | 1-2 | 22 | 0.55 | 1.5 | 1000 | 1800x1000x1200 |
SZLH320 | 3-5 | 37 | 1.5 | 2.2 | 2500 | 2200x1000x1500 |
SZLH350 | 5-8 | 55 | 1.5 | 3 | 3500 | 2500x1100x1600 |
SZLH420 | 8-12 | 110 | 2.2 | 7.5 | 4200 | 3500x1200x1800 |
SZLH508 | 12-18 | 132/160 | 2.2 | 11 | 5100 |
