Dry Type 50-1000 kg/H Fish Feed Extruder For Big Farm
Dry Type 50-1000 kg/H Fish Feed Extruder For Big Farm
Contact Now

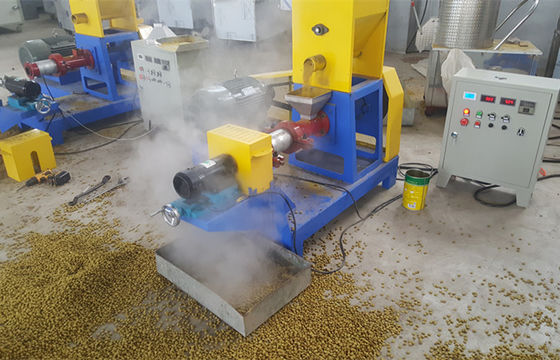

Dry Type 50-1000 kg/H Fish Feed Extruder For Big Farm

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Standard exportation wooden case Delivery Time : 25-30 work days
Payment Terms : T/T L/C Western Union Supply Ability : 10 sets/month
Place of Origin: China Brand Name: AMEC
Certification: CE/ISO Model Number: Dog Food Pellet Making Machine

Detail Information
Item: Fish Feed Extruder Capacity: 50-1000 Kg/H
Type: Floating Fish Feed Extruding Machine Raw Material: Corn/rice/grain
Power Supply: 380v/220v Or Customized Application: Big Farm
High Light:

1000 Kg/H Fish Feed Extruder

,

Dry Type Fish Feed Extruder

,

Big Farm feed pellet making machine

Product Description

Dry Type 50-1000 Kg/H Fish Feed Extruder For Big Farm



Introduction for Fish Feed Extruder :



Fish Feed Extruder is used for processing for dogs and cats (pet food), birds, piglets, frogs, sinking and floating aquatic feeds for fish. Which is high and new technical program as to catch the developing pet food market



Main Parameters of Fish Feed Extruder :



Model No. Voltage Capacity  (t/h) Power
(kw)		 Feeding power
kw		 Screw Dia.
(mm)		 Cutting Power
(kw)		 weight
(kg)		 product size
(mm)
DGP40-C 380V/50Hz 0.03-0.04 5.5 0.4 φ40 0.4 260 1400*1030*1200
DGP50-C 380V/50Hz 0.06-0.08 11 0.4 φ50 0.4 350 1450*1080*1250
DGP60-B 380V/50Hz 0.12-0.15 15 0.4 φ60 0.4 355 1460*1100*1250
DGP70-B 380V/50Hz 0.18-0.25 18.5 0.4 φ70 0.4 580 1600*1400*1350
DGP80-B 380V/50Hz 0.3-0.35 22-27 0.4 φ80 1.1 700 1800*1450*1350
DGP90-B 380V/50Hz 0.4-0.45 32 0.4 φ90 1.5 950 2100*1450*1350
DGP100-B 380V/50Hz 0.5 37 0.75   1.5
DGP120-B 380V/50Hz 0.5-0.7 55 0.4 φ120 2.2 1700 2400*1950*1600
DGP135-B 380V/50Hz 0.8-1.0 75 0.4 φ133 2.2 1900 2550*2050*1650
DGP160-B 380V/50Hz 1.2-1.5 90 1.5 φ155 2.2 3600 2900*2650*1800
DGP200-B 380V/50Hz 1.8-2.0 132 2.2 φ195 3 4300 3000*2850*1900





Structure&Features of Fish Feed Extruder :

1. The pet floating fish feed dog food pellet making machine has international advanced cutting structure and adopts soft knife laminating form to realize stepless speed change. The pet floating fish feed dog food pellet making machine can cut the discharged material into required length products at will, and it is not easy to produce burr.

2.The pet floating fish feed dog food pellet making machine’s design is novel, unique, simple in structure, easy to install, easy to disassemble and easy to operate.

3.The screw sleeve and screw are made of special wear-resistant and high-temperature alloy steel and heat-treated, which have the advantages of wear resistance and long service life.

4. Unique pressure increasing die device is set inside to ensure feed output and quality, and electric heating device is equipped to improve feed expansion rate.

5. The main motor of this pet floating fish feed dog food pellet making machine adopts high-quality Y Series two-phase and three-phase motors to ensure strong power.

6. Speed control feeding device, more convenient to operate, feed evenly, prevent suffocation.



Dry Type 50-1000 kg/H Fish Feed Extruder For Big Farm 0

Dry Type 50-1000 kg/H Fish Feed Extruder For Big Farm 1

Application of This Dry Type Pet Floating Fish Feed Dog Food Pellet Making Machine:

Dry Type 50-1000 kg/H Fish Feed Extruder For Big Farm 2

Dry Type 50-1000 kg/H Fish Feed Extruder For Big Farm 3
