Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving
Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving
Contact Now

Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : standard exportation wooden case Delivery Time : 7-9 work days
Payment Terms : T/T L/C Western Union Supply Ability : 30 sets/month
Place of Origin: China Brand Name: AMEC
Certification: CE/ISO Model Number: 1-20T/H

Detail Information
Features: Simens Motorauto Item: Poultry Animal Feed Processing Machine
Capacity: 1-20t/h Voltage: 380/220v Or Customized
Application: For Making Animal Poultry Feed Pellets Name: Animal Food Making Machine
High Light:

poultry feed making machine

,

animal food making machine

Product Description

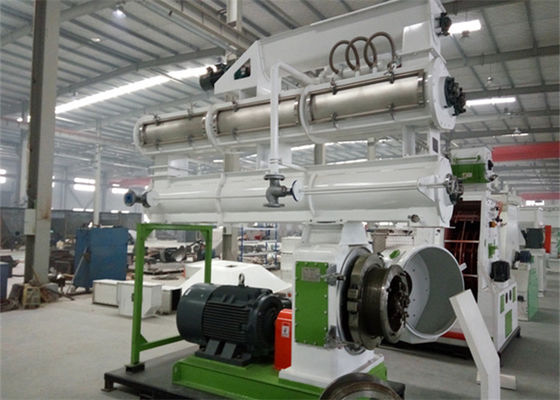

Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving





This Poultry Animal Feed Processing Machine can be used to make feed pellets for all ages chicken and other animals like livestock, ruminants and aquatic for feed pellets making. It is a good choice for the farm owner and those who plans to step into the poultry feed making industry.

Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving 0

Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving 1





Main Parameters of Ring Die Animal Poultry Feed Pellet Making Machine:

Model

Capacity (t/h)

Power

(kw)

Feeding Power (kw)

Conditioner Power (kw)

Weight (kg)

Dimension

(mm)

SZLH250

1-2t/h

22kw

0.55kw

1.5kw

1000kg

1800*1000*1200 mm

SZLH320

3-5t/h

37kw

1.5kw

2.2kw

2500kg

2200*1000*1500 mm

SZLH350

5-8t/h

55kw

1.5kw

3.0kw

3500kg

2500*1100*1600 mm

SZLH420

8-12t/h

110kw

2.2kw

7.5kw

4200kg

3500*1200*1800 mm

SZLH508

12-18t/h

132/160kw

2.2kw

11kw

5100kg

/





Features of Ring Die Animal Feed Pellet Making Machine:

1. SS feeder: 5mm thickness SS material screw, main shaft and paddle. Frequency conversion feeding to ensure homogeneous material. Big open door intensify conditioner makes volume capacity larger by 2-6 times. Lengthen feeder makes the best conditioning effect of raw material. Equipped with steam injection device to avoid the steam reverse ejection.
2. Simens motor
3. SKF Bearing
4. Hoop type detachable ring die: quick detachable encircling ring die procesed by heat treatment vacuum furnace, increase output higher than belt drive by 20%, improves the service life and pellet produced is smooth with high quality.
5. HIgh precision gear, international advanced piping system and imported pressure regulating valve.
6. With full SS door, flume and pull cutter, which is convinient and realiable.



Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving 2

Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving 3

Full Stainless Steel Conditioner

1 All sections is made by stainless steel
2 Corrosion resistance,safety and health
3 With heat insulating layer
4 Dood effect at materials be cooked and sterilized
5 Conditioning time is 75-150s
6 Simple construction,ease of installation
7 Even discharging
8 High gelatinization: 45~50%.

9.Large side access door design for easy cleaning and maintenance.

Full Stainless Steel Conditioner

Conditioning Time
livestock feed :≥15-40s,equip single-layer conditioner
fish feed: ≥ 40-60s,equip double-shaft different speed conditioner+single-layer conditioner
or single-layer conditioner +single-layer conditioner.

Mono roller and small inner diameter of die .Available with die openings varied from φ2mm-12mm , satisfying different experimental designs' requirements.

Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving 4

Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving 5

Siemens Motor

All models of our Animal Feed Pellet Machinery are use Siemens Motor.

Checking Hole

The checking hole, all the part that contact with the materials will be made by stainless steel.

Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving 6

Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving 7

Stainless steel ring die.

The ring die of the Animal Feed Pellet Machine is made by Stainless steel.

Pelleting Chamber.

The pelleting chamber of the Animal Feed Pellet Machine is made by two rollers, two roller shells, one  ring die, and other fixing parts.

Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving 8

Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving 9

Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving 10

Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving 11

Detail Flowchart of Poultry Livestock Animal Feed Pellet Line:

Auto Animal Food Making Machine Animal Feed Processing Equipment Energy Saving 12
