500-1000 Kg/H Feed Pellet Production Line Poultry Feed Pellets Making
Contact Person : Crystal Guo
Phone Number : +86 13083696911
WhatsApp : +8613083696911
|Minimum Order Quantity :||Negotiable||Price :||Negotiable|
|Packaging Details :||standard exportation wooden case||Delivery Time :||25-30 work days|
|Payment Terms :||T/T L/C Western Union||Supply Ability :||10 sets/month|
|Place of Origin:||China||Brand Name:||AMEC|
|Certification:||CE/ISO||Model Number:||Chicken feed pellet line 0.5-2t/h|
|Features:||Small Investment||Item:||Chicken Feed Pellet Line 0.5-2t/h|
|Capacity:||0.5-2t/h Animal Feed Plant||Final Product:||Chicken Feed Pellets|
|Pellet Size:||2-12mm||Motor/bearing:||Siemens/SKF For Main Machinery|
animal feed production line,
pellet mill line

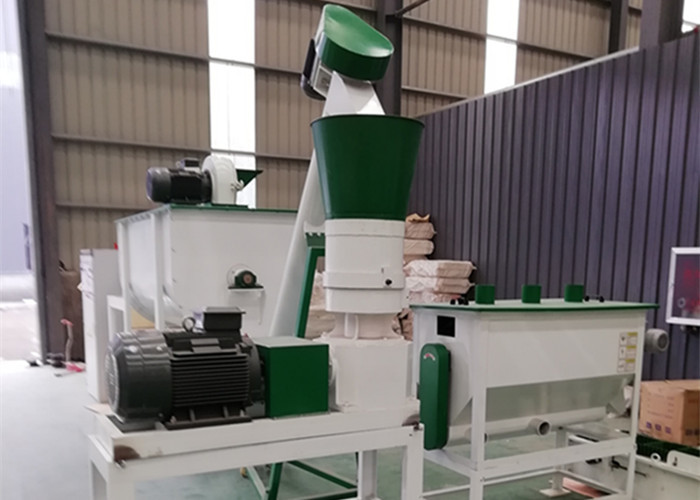

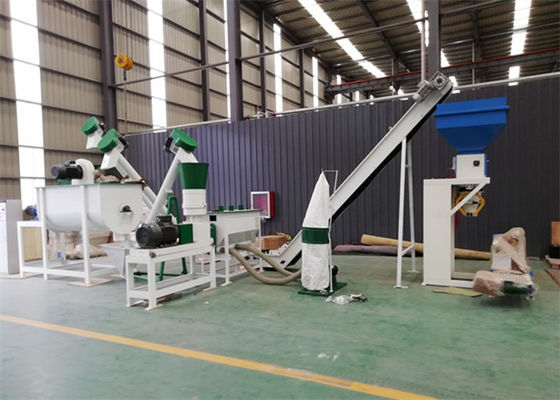

This Complete feed processing chicken feed pellet line 0.5-2t/h can make different kinds of animal feed pellets, not only the chicken feed, but also for making cow/cattle feed, sheep feed and other kinds of pellet feed or powder feed for pig, duck, etc.
1. Simple structure in linear type, easy for installation and operation.
2. Adopting advanced world famous brand Siemens motor for the main machines, such as the hammer mill, mixer and pellet mill.
3. The dimension of this Poultry feed processing line is about 12*3*7.5m(L*W*H).
4. Running this Poultry feed pellet production line needs about 3 to 4 persons. And their responsibilities are as follows:
1 or 2 persons working at the feeding section;
1 person takes care of the pellet machine and watches the control panel
1 person works at the packing section;
1.Grain Hammer Crusher: 18.5kw
2.Feed Pellet Machine: 22kw
3.Single Ribbon Belt Feed Mixer: 7.5kw
4.Counter-flow Pellet Cooling Machine:
5.Other related equipment: counter-flow pellet cooling machine, vibrating screen, feed pellet crumbler, screw conveyor, bucket elevator, cyclone, dust catcher, etc.
1T/H Poultry/Chicken Feed Pellet Line:
