500-1000 Kg/H Feed Pellet Production Line Poultry Feed Pellets Making
Contact Person : Crystal Guo
Phone Number : +86 13083696911
WhatsApp : +8613083696911
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | standard exportation wooden case | Delivery Time : | 25-30 work days |
Payment Terms : | T/T L/C Western Union | Supply Ability : | 10 sets/month |
Place of Origin: | China | Brand Name: | AMEC |
---|---|---|---|
Certification: | CE/ISO | Model Number: | 8-12t/h Feed Pellet Production Line |
Detail Information |
|||
Features: | Auto Batching | Item: | Complete Auto Batching Animal Feed Pellet Production Line |
---|---|---|---|
Capacity: | 8-12t/h Feed Pellet Production Line | Application: | For Building Big Scale Animal Feed Plant |
High Light: | poultry feed production line,pellet mill line |
Product Description

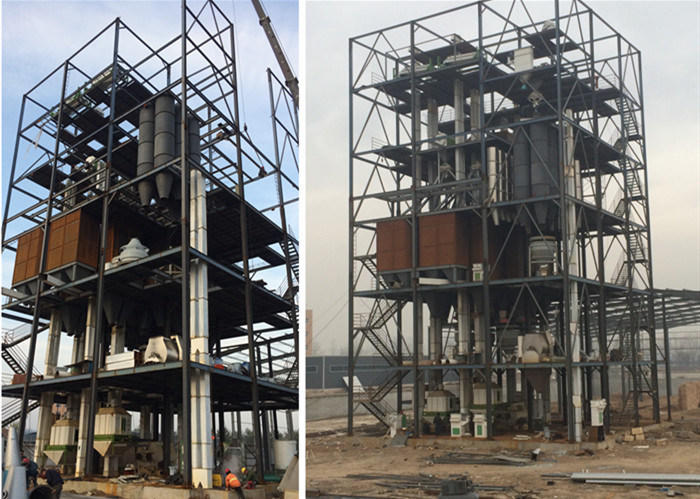

1. This complete 8-12t/h Complete Auto Batching Animal Feed Pellet Production Line is suitable for producing all kinds of feed pellets for various animals such as chicken, pig, cow, cattle, goat, rabbit and fish, etc.
2. Just use different size of ring die mould to produce different animal livestock poultry feed pellet according to the requirement of different animal and poultry.
3. The replacement of the ring die mould is very easy.
1.Grain Hammer Crusher: 110kw
2.Feed Mixer: 22kw
3.Feed Pellet Machine: 110kw
4.Other related equipment: counter-flow pellet cooling machine, vibrating screen, feed pellet crumbler, screw conveyor, bucket elevator, cyclone, dust catcher, etc.
Function: remove the impurities from the raw material to ensure the quality of the final feed pellets and avoid the damage to the machine.
Drum-type Pre-cleanerRemove the impurities mixed in the raw material. |
Permenant magnetic sleeveRemove the iron, steel, nails, etc. |
Hammer MillCrush the material into small particles suitable for pellet making. |
Function: batch different type raw material into mixer for mixing evennessly according to different animal formula requirements.
Multi-outlet Rotary DistributorWith multi-outlet for distributing different crushed material to pointed silo waiting for mixing. |
Batching ScaleControlled by computer, 1000kg/batch, when material reaches this capacity, it will be automatically dropped to the hopper under it. |
Horizontal Shaft Paddle MixerMix different raw material discharged by the batching scale together evennessly. |
Function: press the mixed well material into feed pellets, after the cooling of pellets, if needed, the pellets will be crumbed into small pellets.
Feed Pellet MachineEuipped with conditioner, this pellet machine will steam and soft the material first to kill the bacteria and improve the qualitiy and capacity of final feed pellets. |
Cooling MachineFor cooling the final pellets to normal room temperature. |
Pellet Crumbling MachineCrumbling the final feed pellets to small pieces(small animal needs). |
Mainly needs rotary screen and automatic packing machine to finish this process part.
Rotary ScreenEquipped with 3 outlest: 1. the qualified pellets will go directly to the packing machine. 2. the bigger size pellets will go for breaking. 3. the smaller size pellets will go for re-pelleting. |
Packing MachinePacking scope: 5-50kg/bag or according to your needs. |
