AMEC High Standard Bucket Elevator Conveyor Heat Resistant Host Equipment

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : standard exportation wooden case Delivery Time : 7-9 work days
Payment Terms : T/T L/C Western Union Supply Ability : 30 sets/month
Place of Origin: China Brand Name: AMEC
Certification: CE/ISO Model Number: Bucket Conveyor Machine

Detail Information

Features: High Output Bucket Conveyor Machine Item: Bucket Conveyor Machine
Funcion: For Lifting Pellet Or Powder Material Vertically Capacity: 6-110t/h
Advantage: No Residue Bucket Conveyor Machine Warranty: 1 Year
High Light:

scraper chain conveyor

,

horizontal belt conveyor

Product Description

AMEC High Standard Bucket Elevator Conveyor Heat Resistant Host Equipment



Bucket conveyor machine is a kind of conveying equipment used for conveying bulk materials vertically.
It is widely used in the feed industry, cement industry, chemical industry, power plant, grain storage and other industry etc,
For conveying feed pellet, cement, cement clinker, crushed lime, sand, compound fertilizer, coal, grain and other bulk material etc.
Our company manufacture various type bucket elevator to meet your different demands.





Applications of Bucket Conveyor Machine:

Bucket pellet conveyors are widely used in feed, grain and oil, metallurgy, cement, chemical, light industry and other industries. It is used to lift feed pellet, grain, lump coal, gravel, ore, egg stone, dry and bulk and flow, granules and bulk materials. The material density is not more than 2t / m3, and the site temperature does not exceed 200 °C.





Working Principle of Bucket Conveyor Machine:

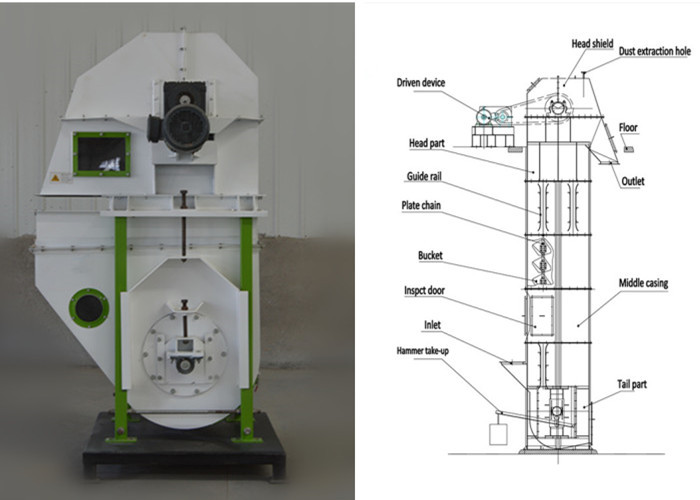

Bucket conveyor machine is composed of machine head, main frame,Maintenance cylinder,Ventilators, dustpan, dustpanbelt and machine base.

The materials are fed into the machine from the bottom and discharged from the top.
1. Firstly, the materials are evenly fed into the dustpan on the machine base;
2. Secondly, the materials are elevated into the machine head;
3. Thirdly, the raw materials are dumped into the targeted machine.





Main Parameters of Bucket Conveyor Machine:

Model

TDTG36/18

TDTG36/23

TDTG36/28

TDTG40/23

TDTG50/28

TDTG63/28

Capacity(t/h)

6-15

10-20

12-34

18-40

25-75

38-110
